Description

• Unique Feature
  ASRock Super Alloy
  — Premium 50A Power Choke
  — Sapphire Black PCB
  — High Density Glass Fabric PCB
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  — Supports 10th Gen Intel^® Core™ Processors (Socket 1200)
  — Digi Power design
  — 5 Power Phase design
  — Supports Intel^® Turbo Boost Max 3.0 Technology
• Chipset
  — Intel^® H410
• Memory
  — Dual Channel DDR4 Memory Technology
  — 2 x DDR4 DIMM Slots
  — Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
  — Supports ECC UDIMM memory modules (operate in non-ECC mode)
  — Max. capacity of system memory: 64GB**
  — Supports Intel^® Extreme Memory Profile (XMP) 2.0
  — 15μ Gold Contact in DIMM Slots

  *Please refer to Memory Support List on ASRock’s website for more information.
  Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 up to 2666.

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS
  — 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  — ACPI 6.0 Compliant wake up events
  — SMBIOS 2.7 Support
  — CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment
• Graphics
  — Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
  — Graphics, Media & Compute: Microsoft^® DirectX 12, OpenGL 4.5, Intel^® Built In Visuals, Intel^® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
  — Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft^® PlayReady 3.0, Intel^® SGX Content Protection, UHD Blu-ray Disc
  — Dual graphics output: support HDMI and D-Sub ports by independent display controllers
  — Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
  — Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
  — Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  — Supports HDCP 2.3 with HDMI 1.4 Port
  — Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  **VP9 10bit and VC-1 are for decode only.
  VP8 and VP9 encode are not supported by Windows^® OS.

• Audio
  — 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  — Supports Surge Protection
• LAN
  — PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  — 1 x Realtek RTL8111H
  — Supports Wake-On-LAN
  — Supports Lightning/ESD Protection
  — Supports Energy Efficient Ethernet 802.3az
  — Supports PXE
• Slots
  — 1 x PCI Express 3.0 x16 Slot
  — 1 x PCI Express 3.0 x1 Slot

  *Supports NVMe SSD as boot disks
• Storage
  — 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
• Connector
  — 1 x SPI TPM Header
  — 1 x Chassis Intrusion and Speaker Header
  — 1 x CPU Fan Connector (4-pin)*
  — 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  — 1 x 24 pin ATX Power Connector
  — 1 x 8 pin 12V Power Connector
  — 1 x Front Panel Audio Connector
  — 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  — 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

  *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  **The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

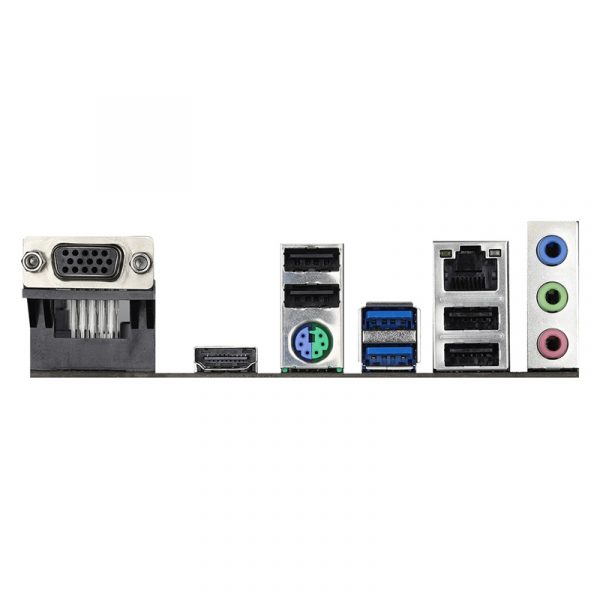

• Rear Panel I/O
  — 1 x PS/2 Mouse/Keyboard Port
  — 1 x D-Sub Port
  — 1 x HDMI Port
  — 4 x USB 2.0 Ports (Supports ESD Protection)
  — 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  — 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  — HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  — ASRock Motherboard Utility (A-Tuning)
  — ASRock XFast LAN
  UEFI
  — ASRock EZ Mode
  — ASRock Full HD UEFI
  — ASRock My Favorites in UEFI
  — ASRock Instant Flash
  — ASRock Internet Flash

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  — Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  — Quick Installation Guide, Support CD, I/O Shield
  — 2 x SATA Data Cables
• Hardware Monitor
  — Temperature Sensing: CPU, Chassis/Water Pump Fans
  — Fan Tachometer: CPU, Chassis/Water Pump Fans
  — Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
  — Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
  — CASE OPEN detection
  — Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, PCH +1.0V
• Form Factor
  — Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
  — Solid Capacitor design
• OS
  — Microsoft^® Windows^® 10 64-bit / 11 64-bit
• Certifications
  — FCC, CE
  — ErP/EuP ready (ErP/EuP ready power supply is required)
