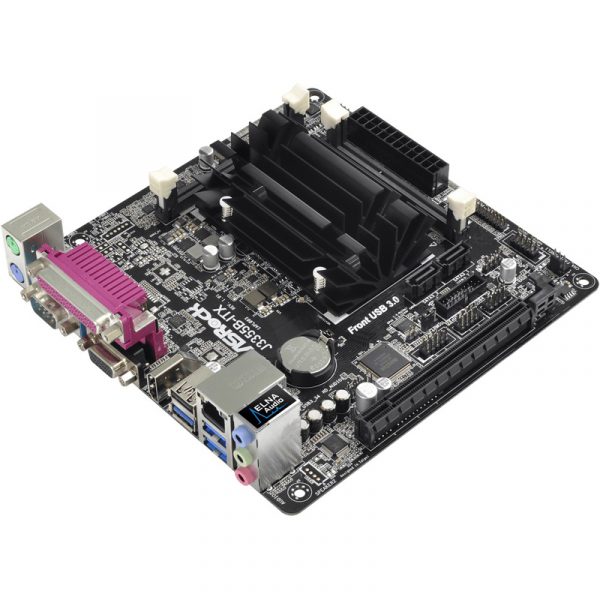

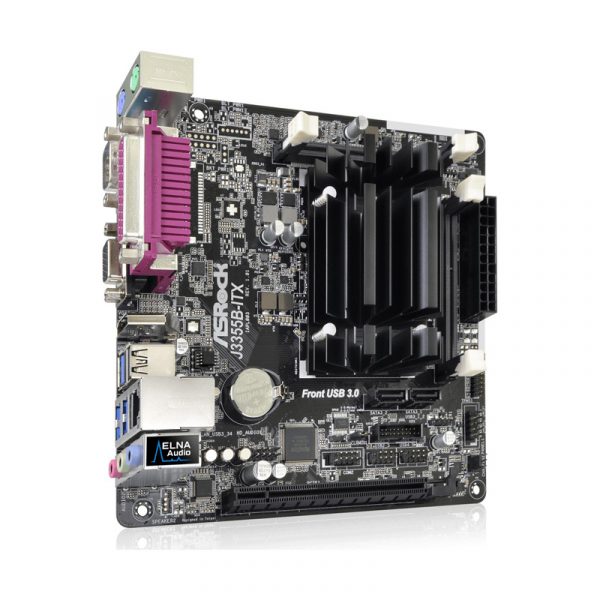

Description

• Unique Feature
  ASRock Super Alloy
  – High Density Glass Fabric PCB
  ASRock Full Spike Protection
  ASRock Live Update & APP Shop
• CPU
  – Intel^® Dual-Core Processor J3355 (up to 2.5 GHz)
• Memory
  – Dual Channel DDR3/DDR3L Memory Technology
  – 2 x DDR3/DDR3L SO-DIMM Slots*
  – Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory
  – Max. capacity of system memory: 16GB**

  *2GB DRAM per module is not supported.

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS
  – 64Mb AMI UEFI Legal BIOS with GUI support
  – Supports Plug and Play
  – ACPI 5.0 compliant wake up events
  – Supports jumperfree
  – SMBIOS 3.0 support
• Graphics
  – Integrated Intel^® HD Graphics 500: 12 EUs inside (Up to 700MHz)
  – DirectX 12, Pixel Shader 5.0
  – Dual graphics output: support D-Sub and HDMI ports by independent display controllers
  – Supports HDMI with max. resolution up to 4K x 2K (3840×2160) @ 30Hz or 2560×1600 @ 60Hz
  – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
  – Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  – Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP level 5.1 (GPU accelerated), JPEG, VP8, VP9
  – Supports HDCP with HDMI Port
  – Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port
• Audio
  – 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
  – Supports Surge Protection (ASRock Full Spike Protection)
  – ELNA Audio Caps

  *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• LAN
  – PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  – Realtek RTL8111GR
  – Supports Wake-On-WAN
  – Supports Wake-On-LAN
  – Supports Lightning/ESD Protection (ASRock Full Spike Protection)
  – Supports LAN Cable Detection
  – Supports Energy Efficient Ethernet 802.3az
  – Supports PXE
• Slots
  – 1 x PCI Express 2.0 x16 Slot (PCIE1: x2 mode)
• Storage
  – 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
• Connector
  – 1 x COM Port Header
  – 1 x Chassis Intrusion Header
  – 1 x TPM Header
  – 1 x CPU Fan Connector (3-pin)
  – 1 x Chassis Fan Connector (3-pin)
  – 1 x 24 pin ATX Power Connector
  – 1 x Front Panel Audio Connector
  – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
  – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection))*

  *USB3_1_2 is shared with USB2_3.

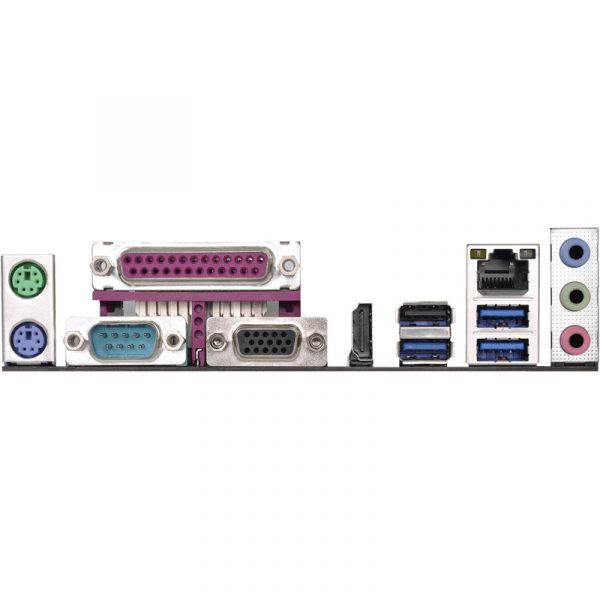

• Rear Panel I/O
  – 1 x PS/2 Mouse Port
  – 1 x PS/2 Keyboard Port
  – 1 x Parallel Port (ECP/EPP Support)
  – 1 x Serial Port: COM1
  – 1 x D-Sub Port
  – 1 x HDMI Port
  – 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
  – 3 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
  – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  – HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  – ASRock Power Gear
  – ASRock XFast LAN*
  UEFI
  – ASRock Power Gear
  – ASRock Instant Flash
  – ASRock Internet Flash
  – ASRock Crashless BIOS

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  – Quick Installation Guide, Support CD, I/O Shield
  – 2 x SATA Data Cables
• Hardware Monitor
  – CPU, Chassis temperature sensing
  – CPU, Chassis Fan Tachometer
  – CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
  – CPU, Chassis Fan multi-speed control
  – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
• Form Factor
  – Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
  – Solid Capacitor design
• OS
  – Microsoft^® Windows^® 10 64-bit*
  – Linux: Ubuntu 16.10 / Fedora 25**

  *For the updated Windows^® 10 driver, please visit ASRock’s website for details.

  **Linux O/S basic function support only, due to the compatibility of the Liunx system itself, there is no guarantee that all functions are supported.

• Certifications
  – FCC, CE
  – ErP/EuP ready (ErP/EuP ready power supply is required)
