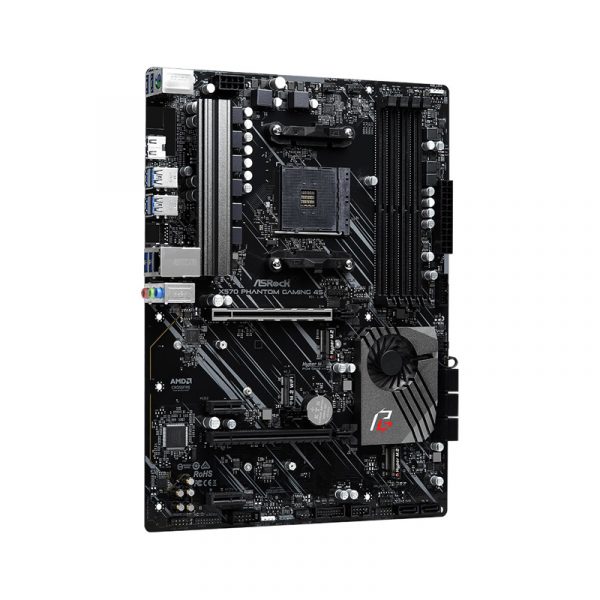

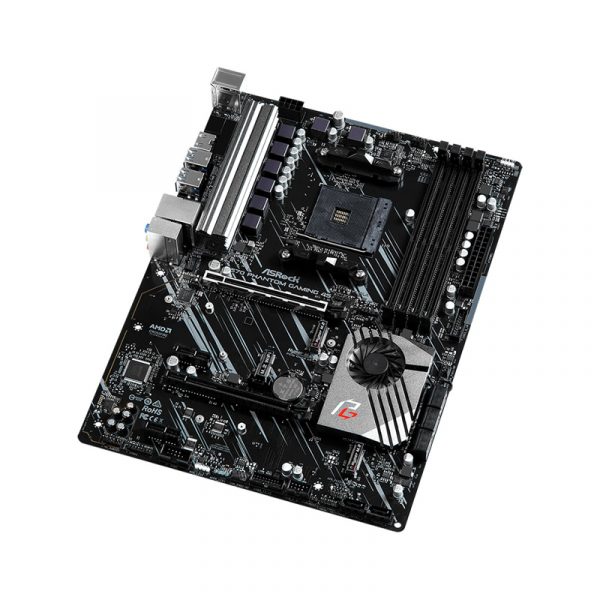

Description

• Gaming Armor
  Memory
  – 15μ Gold Contact in DIMM Slots
  VGA Card
  – 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  Internet
  – Intel^® LAN
  Cooling
  – XXL Aluminum Alloy Heatsink
• Unique Feature
  ASRock Super Alloy
  – Premium 50A Power Choke
  – Sapphire Black PCB
  – High Density Glass Fabric PCB
  ASRock Steel Slot Gen4
  ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
  ASRock POST Status Checker (PSC)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  – Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  – 8 Power Phase design
• Chipset
  – AMD X570
• Memory
  – Dual Channel DDR4 Memory Technology
  – 4 x DDR4 DIMM Slots
  – AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  – AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  – AMD Ryzen series APUs (Cezanne) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  – AMD Ryzen series APUs (Renoir) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  – AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
  – Max. capacity of system memory: 128GB**
  – Supports Extreme Memory Profile (XMP) memory modules
  – 15μ Gold Contact in DIMM Slots

  *For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is only supported with PRO CPUs.
  Please refer to below table for AMD non-XMP memory frequency support.

  Ryzen Series CPUs (Vermeer):


  Ryzen Series CPUs (Matisse):


  Ryzen Series CPUs (Cezanne):


  Ryzen Series APUs (Renoir)


  Ryzen Series CPUs (Pinnacle Ridge):


  Ryzen Series CPUs (Picasso):


  SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2
  DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS
  – 256Mb AMI UEFI Legal BIOS with GUI support
  – Supports “Plug and Play”
  – ACPI 5.1 compliance wake up events
  – Supports jumperfree
  – SMBIOS 2.3 support
  – CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP, VDDG, CPU Load-Line Calibration, CPU VDDCR_SOC Load-Line Calibration Voltage Multi-adjustment
• Graphics
  – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
  – DirectX 12, Pixel Shader 5.0
  – Shared memory default 2GB. Max Shared memory supports up to 16GB.**
  – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
  – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
  – Supports HDR (High Dynamic Range) with HDMI 2.0
  – Supports HDCP 2.2 with HDMI 2.0 Port
  – Supports 4K Ultra HD (UHD) playback with HDMI 2.0 Port
  – Supports Microsoft^® PlayReady

  *Actual support may vary by CPU

  **The Max shared memory 16GB requires 32GB system memory installed.

• Audio
  – 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
  – Premium Blu-ray Audio support
  – Supports Surge Protection
  – ELNA Audio Caps
  – PCB Isolate Shielding
  – Individual PCB Layers for R/L Audio Channel
• LAN
  – Gigabit LAN 10/100/1000 Mb/s
  – Giga PHY Intel^® I211AT*
  – Supports Wake-On-LAN
  – Supports Lightning/ESD Protection
  – Supports Energy Efficient Ethernet 802.3az
  – Supports PXE

  *To support WOL on I211 LAN “Please refer to FAQ“
• Slots
  AMD Ryzen series CPUs (Vermeer, Matisse)
  – 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1))*
  AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge)
  – 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1))*
  AMD Ryzen series CPUs (Picasso)
  – 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*
  AMD X570 Chipset
  – 1 x PCI Express 4.0 x16 Slot (x4 (PCIE3))*

  – 2 x PCI Express 4.0 x1 Slots
  – Supports AMD Quad CrossFireX™ and CrossFireX™
  – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  – 15μ Gold Contact in VGA PCIe Slot (PCIE1)

  *Supports NVMe SSD as boot disks
• Storage
  – 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  – 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)*
  – 1 x Hyper M.2 Socket (M2_3), supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)*

  *If Thunderbolt™ support is enabled, SATA type M.2 will be disabled.
  Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit
  Support RAID 0/1/10
• Connector
  – 1 x COM Port Header
  – 1 x Power LED and Speaker Header
  – 2 x RGB LED Headers*
  – 1 x Addressable LED Header**
  – 1 x CPU Fan Connector (4-pin)***
  – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  – 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  – 1 x 24 pin ATX Power Connector
  – 1 x 8 pin 12V Power Connector
  – 1 x Front Panel Audio Connector
  – 1 x AMD LED Fan USB Header
  – 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC Card R2.0 only)
  – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
  – 1 x SPI TPM Header*******

  *Support in total up to 12V/3A, 36W LED Strip

  **Supports in total up to 5V/3A, 15W LED Strip

  ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

  *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.

  *******Please refer to the link for further information: https://asrock.com/mb/spec/product.asp?Model=TPM-SPI

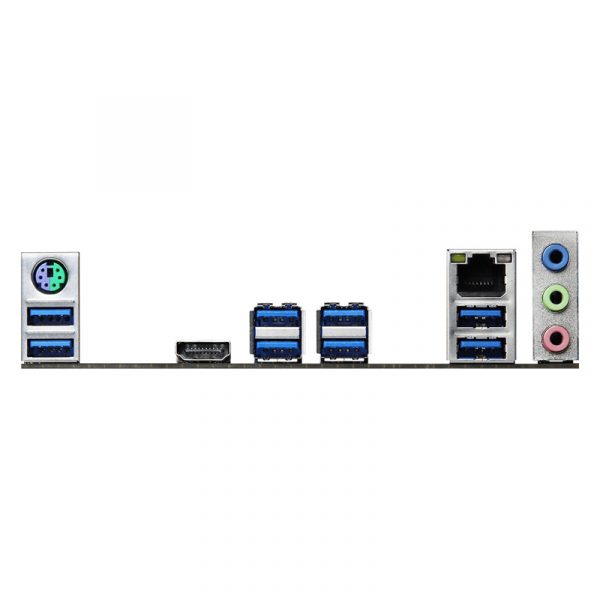

• Rear Panel I/O
  – 1 x PS/2 Mouse/Keyboard Port
  – 1 x HDMI Port
  – 8 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  – HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  – ASRock Phantom Gaming Tuning
  – ASRock Polychrome SYNC
  – ASRock Key Master
  – ASRock XFast LAN
  UEFI
  – ASRock Full HD UEFI
  – ASRock Instant Flash

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  – Quick Installation Guide, Support CD, I/O Shield
  – 2 x SATA Data Cables
  – 3 x Screws for M.2 Sockets
• Hardware Monitor
  – Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
  – Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
  – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
  – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
  – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, PREM VDDCR_SOC, +1.8V, VDDP
• Form Factor
  – ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm
  – Solid Capacitor design
• OS
  – Microsoft^® Windows^® 10 64-bit / 11 64-bit
• Certifications
  – FCC, CE
  – ErP/EuP ready (ErP/EuP ready power supply is required)
