Intel® Socket 1151 for 9^th / 8^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Intel® H310

2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : DVI-D/D-Sub ports
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 2.0 x1

Intel® H310 Chipset :
4 x SATA 6Gb/s port(s), gray,

Realtek® RTL8111H, 1 x Gigabit LAN

Realtek ALC887/897 8-Channel High Definition Audio CODEC *
– Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
– Audio Shielding
– Dedicated audio PCB layers
– Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

Intel® H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

ASUS 5X Protection III :
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM: 4 Phase digital power design
ASUS OptiMem：
– Optimem (Improved DDR4 stability)
ASUS EPU :
– EPU
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– PC Cleaner
– File Transfer
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution
– ASUS Fan Xpert
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
– ASUS Q-DIMM

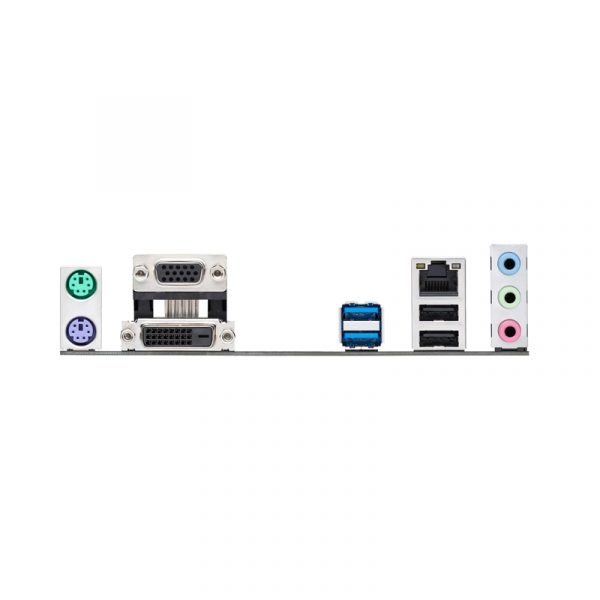

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
2 x USB 2.0
3 x Audio jack(s)

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information

WOL by PME, PXE

Windows® 10 64-bit

mATX Form Factor
8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
