Intel® Socket 1151 for 9^th / 8^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Intel® H370

4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DVI-D/D-Sub ports
– Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
– Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
– Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Supports AMD CrossFireX™ Technology

1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
2 x PCIe 3.0/2.0 x1

Intel® H370 Chipset :
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)*¹
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

Intel® I219V, 1 x Gigabit LAN Controller(s)
ASUS LAN Guard

Realtek® ALC887 8-Channel High Definition Audio CODEC
– Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

Intel® H370 Chipset :
2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)
Intel® H370 Chipset :
5 x USB 3.1 Gen 1 up to 5Gbps port(s) (3 at back panel, , Type-A + USB Type-C^TM, 2 at mid-board)
Intel® H370 Chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

ASUS 5X Protection III :
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
– ASUS DIGI+ VRM: 6 Phase digital power design
ASUS EPU :
– EPU
ASUS Exclusive Features :
– AI Suite 3
– Ai Charger
– PC Cleaner
– File Transfer
ASUS Quiet Thermal Solution :
– Stylish Fanless Design Heat-sink solution & MOS Heatsink
– ASUS Fan Xpert 4 Core
ASUS EZ DIY :
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
– ASUS Q-Slot
– ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

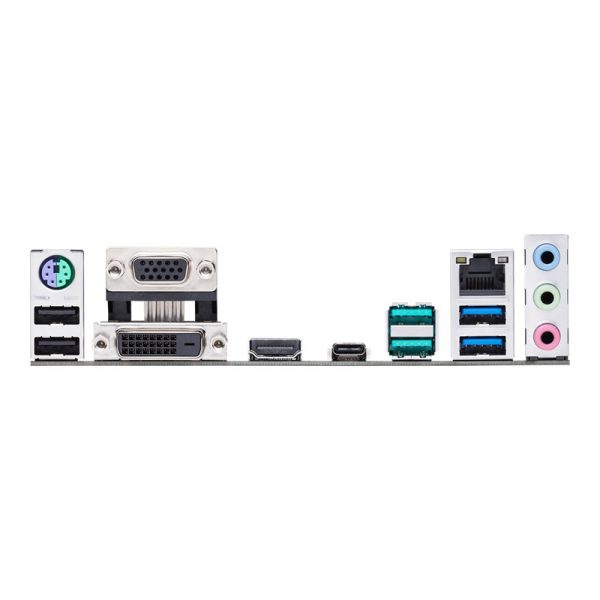

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)up to 10Gbps
3 x USB 3.1 Gen 1 (blue) Type-A + USB Type-C^TM
2 x USB 2.0
3 x Audio jack(s)

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x TPM header
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (1 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Mono Out header

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x SCD

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

WOL by PME, PXE

Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)

Windows® 10 64-bit

mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

*1. *The M.2_1 socket shares SATA_2 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
