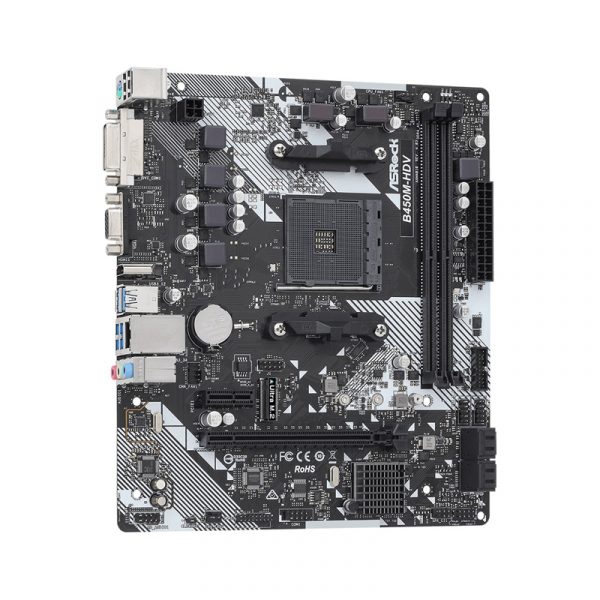

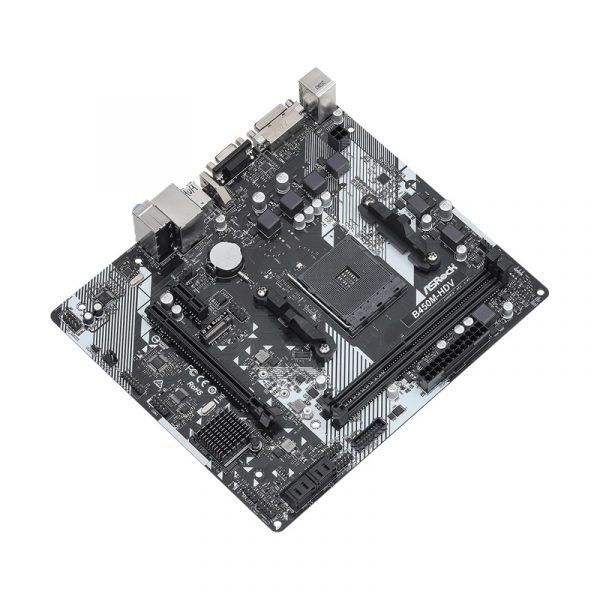

Description

• Unique Feature
  ASRock Super Alloy
  — High Density Glass Fabric PCB
  — Sapphire Black PCB
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  — Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  — 6 Power Phase design
  — Supports CPU up to 105W
• Chipset
  — AMD Promontory B450
• Memory
  — Dual Channel DDR4 Memory Technology
  — 2 x DDR4 DIMM Slots
  — AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  — AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  — AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  — AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  — AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  — AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
  — AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
  — AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
  — Max. capacity of system memory: 64GB*
  — Supports Extreme Memory Profile (XMP) memory modules
  — 15μ Gold Contact in DIMM Slots

  *For Ryzen Series APUs (Picasso, Cezanne, Renoir and Raven Ridge), ECC is only supported with PRO CPUs.
  Please refer to below table for AMD non-XMP memory frequency support.

  Ryzen Series CPUs (Vermeer):


  Ryzen Series CPUs (Matisse):


  Ryzen Series APUs (Cezanne):


  Ryzen Series APUs (Renoir):


  Ryzen Series CPUs (Pinnacle Ridge):


  Ryzen Series CPUs (Picasso):


  Ryzen Series CPUs (Summit Ridge):


  Ryzen Series CPUs (Raven Ridge):


  SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
  DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS
  — 128Mb AMI UEFI Legal BIOS with GUI support
  — Supports “Plug and Play”
  — ACPI 5.1 compliance wake up events
  — Supports jumperfree
  — SMBIOS 2.3 support
  — DRAM Voltage multi-adjustment
• Graphics
  — Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
  — DirectX 12, Pixel Shader 5.0
  — Shared memory default 2GB. Max Shared memory supports up to 16GB.**
  — Three graphics output options: D-Sub, DVI-D and HDMI
  — Supports Triple Monitor
  — Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz
  — Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
  — Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz
  — Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
  — Supports HDCP 1.4 with DVI-D and HDMI Ports
  — Supports 4K Ultra HD (UHD) playback with HDMI Port

  *Actual support may vary by CPU

  **The Max shared memory 16GB requires 32GB system memory installed.

• Audio
  — 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  — Supports Surge Protection
• LAN
  — PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  — Realtek RTL8111H
  — Supports Wake-On-LAN
  — Supports Lightning/ESD Protection
  — Supports Energy Efficient Ethernet 802.3az
  — Supports PXE
• Slots
  AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
  — 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
  AMD Ryzen series CPUs (Picasso, Raven Ridge)
  — 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
  AMD Athlon series CPUs
  — 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*

  — 1 x PCI Express 2.0 x1 Slot

  *Supports NVMe SSD as boot disks
• Storage
  — 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  — 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)*

  *Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit
• Connector
  — 1 x COM Port Header
  — 1 x TPM Header
  — 1 x Chassis Intrusion and Speaker Header
  — 1 x CPU Fan Connector (4-pin)*
  — 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)**
  — 1 x 24 pin ATX Power Connector
  — 1 x 4 pin 12V Power Connector
  — 1 x Front Panel Audio Connector
  — 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  — 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

  *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  **The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

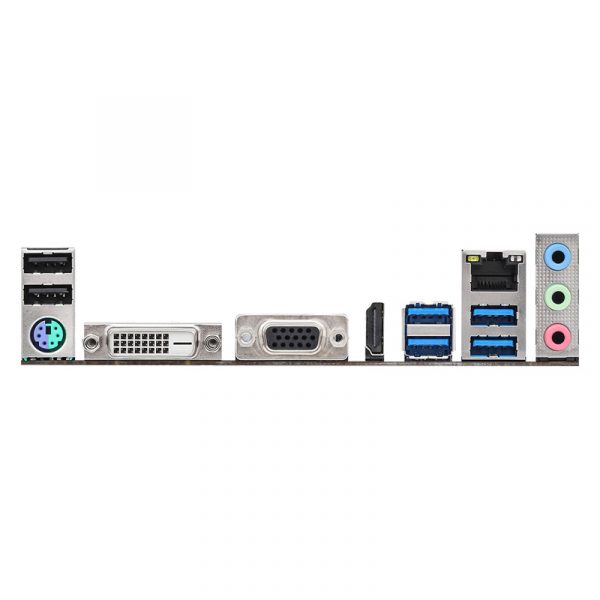

• Rear Panel I/O
  — 1 x PS/2 Mouse/Keyboard Port
  — 1 x D-Sub Port
  — 1 x DVI-D Port
  — 1 x HDMI Port
  — 2 x USB 2.0 Ports (Supports ESD Protection)
  — 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
  — 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  — HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
  Software
  — ASRock A-Tuning
  — ASRock XFast LAN
  UEFI
  — ASRock Full HD UEFI
  — ASRock Instant Flash
  — ASRock Easy RAID Installer

  *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD
  — Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories
  — Quick Installation Guide, Support CD, I/O Shield
  — 2 x SATA Data Cables
  — 1 x Screw for M.2 Socket
• Hardware Monitor
  — CPU/Chassis temperature sensing
  — CPU/Chassis Fan Tachometer
  — CPU/Chassis Quiet Fan
  — CPU/Chassis Fan multi-speed control
  — CASE OPEN detection
  — Voltage monitoring: +12V, +5V, +3.3V, Vcore
• Form Factor
  — Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
  — Solid Capacitor design
• OS
  — Microsoft^® Windows^® 10 64-bit / 11 64-bit*

  *Summit Ridge do not officially support Windows^® 11.
• Certifications
  — FCC, CE
  — ErP/EuP ready (ErP/EuP ready power supply is required)
