Description

• Unique Feature
  ASRock Super Alloy
  — Premium 50A Power Choke
  — Sapphire Black PCB
  — High Density Glass Fabric PCB
  ASRock Steel Slots
  ASRock Full Coverage M.2 Heatsink
  ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
  ASRock POST Status Checker (PSC)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU
  — Supports 10th Gen Intel^® Core™ Processors (Socket 1200)
  — Digi Power design
  — 9 Power Phase design
  — Supports Intel^® Turbo Boost Max 3.0 Technology
• Chipset
  — Intel^® B460
• Memory
  — Dual Channel DDR4 Memory Technology
  — 4 x DDR4 DIMM Slots
  — Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
  — Supports ECC UDIMM memory modules (operate in non-ECC mode)
  — Max. capacity of system memory: 128GB**
  — Supports Intel^® Extreme Memory Profile (XMP) 2.0
  — 15μ Gold Contact in DIMM Slots

  *Please refer to Memory Support List on ASRock’s website for more information.
  Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium^® and Celeron^® support DDR4 up to 2666.

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

• BIOS
  — 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  — ACPI 6.0 Compliant wake up events
  — SMBIOS 2.7 Support
  — CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment
• Graphics
  — Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
  — Graphics, Media & Compute: Microsoft^® DirectX 12, OpenGL 4.5, Intel^® Built In Visuals, Intel^® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
  — Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft^® PlayReady 3.0, Intel^® SGX Content Protection, UHD/HDR Blu-ray Disc

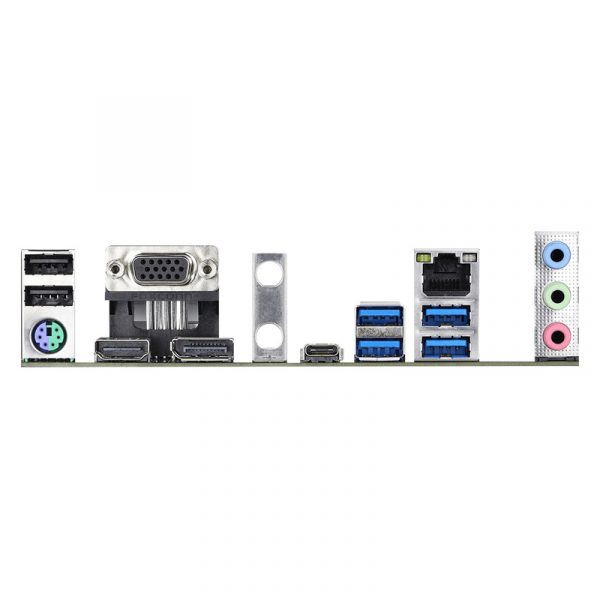

  — Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
  — Supports Triple Monitor
  — Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
  — Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
  — Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
  — Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
  — Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports
  — Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports

  *Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  **VP9 10bit and VC-1 are for decode only.
  VP8 and VP9 encode are not supported by Windows^® OS.

• Audio
  — 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
  — Premium Blu-ray Audio support
  — Supports Surge Protection
  — ELNA Audio Caps
  — PCB Isolate Shielding
  — Individual PCB Layers for R/L Audio Channel
  — Nahimic Audio
